| Part No. | Size | Dimensions(mm) | |||

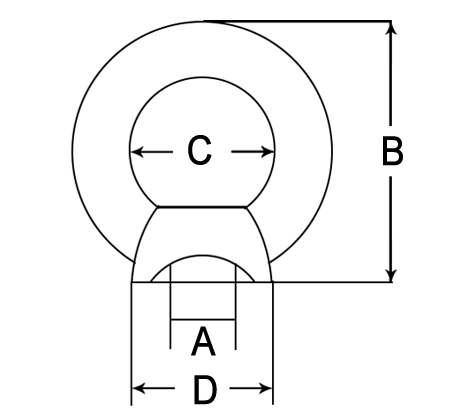

| mm | A | B | C | D | |
| K582N060 | 6 | 6 | 28 | 16 | 20 |
| K582N080 | 8 | 8 | 36 | 20 | 20 |
| K582N100 | 10 | 10 | 45 | 25 | 25 |
| K582N120 | 12 | 12 | 53 | 30 | 30 |
| K582N160 | 16 | 16 | 62 | 35 | 35 |
| K582N200 | 20 | 20 | 71 | 40 | 40 |
| K582N240 | 24 | 24 | 90 | 50 | 50 |
| K582N300 | 30 | 30 | 109 | 60 | 60 |
