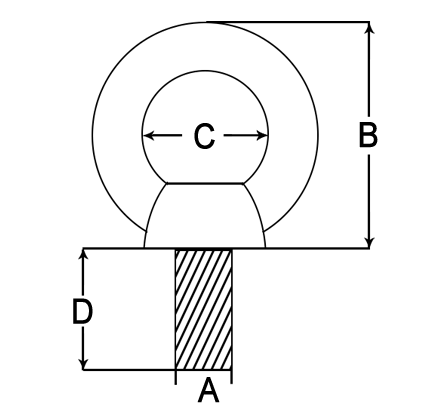

| Part No. | Size | Dimensions(mm) | |||
| mm | A | B | C | D | |
| K580B060 | 6 | 6 | 28 | 16 | 13 |
| K580B080 | 8 | 8 | 36 | 20 | 14 |
| K580B100 | 10 | 10 | 45 | 25 | 17 |
| K580B120 | 12 | 12 | 53 | 30 | 21 |
| K580B160 | 16 | 16 | 62 | 35 | 27 |
| K580B200 | 20 | 20 | 71 | 40 | 30 |
| K580B240 | 24 | 24 | 90 | 50 | 36 |
| K580B300 | 30 | 30 | 109 | 60 | 45 |
