When properly applied, ferrules are capable of holding the rated breaking strength of the rope to which they are applied. However, to determine the exact holding strength, TENSION TEST mush be performed been using. This step insures the proper selection of materials, the correct swaging procedure, and an ample margin of safety for the intended use.

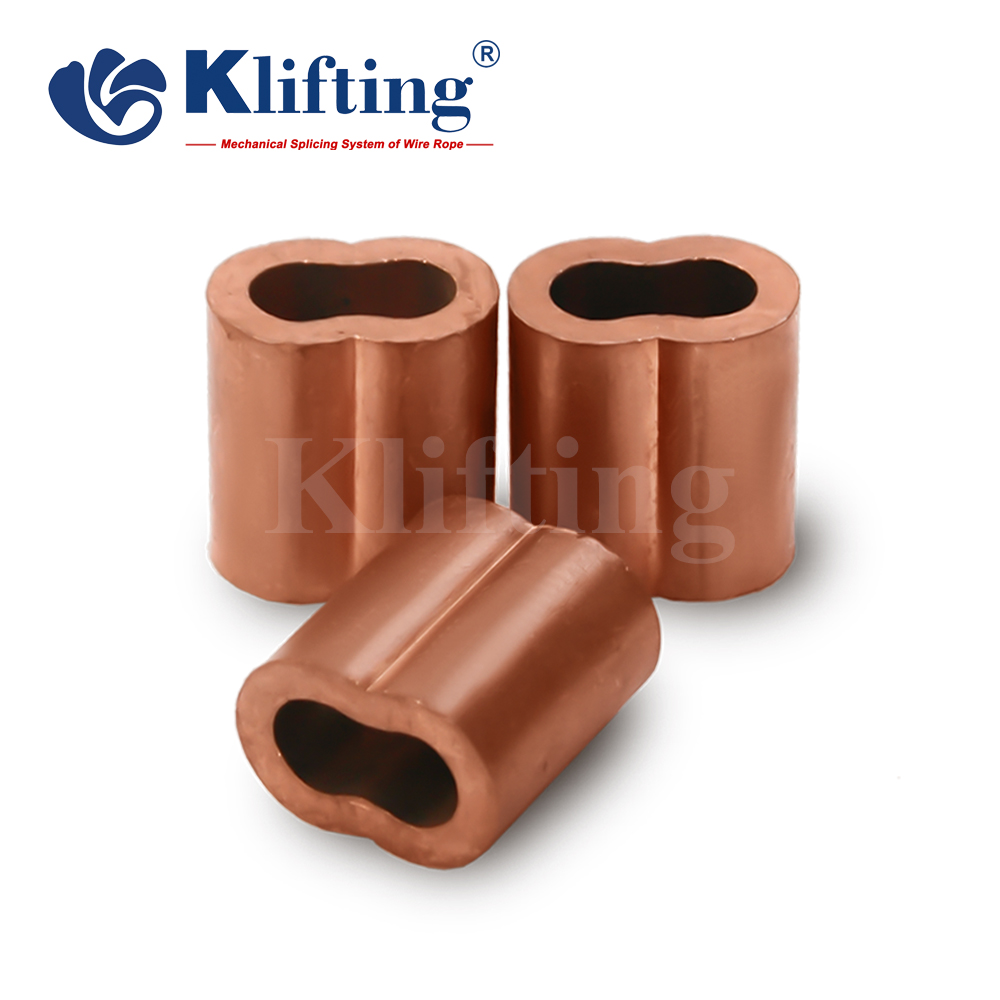

| Product Name | Copper Hourglass Ferrule |
| Standard | US |
| Brand | Klifting |
| Material | Copper |
| Technology | Extrusion |
| Size | 3/64''-5/8'' |
| Copper Hourglass Ferrule | |||||||

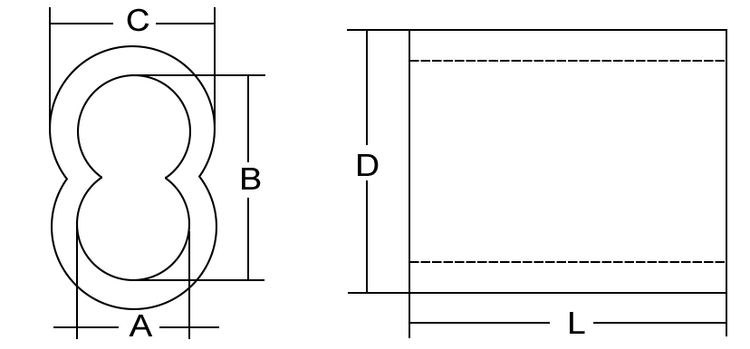

| Part No. | Ferrule Code | Rope size(mm) | A(mm) | B(mm) | C(mm) | D(mm) | L(mm) |
| KHC0364 | 3/64 | 1 | 1.59 | 3.18 | 3.6 | 5.2 | 9.5 |
| KHC0116 | 1/16 | 1.5 | 1.98 | 3.97 | 4.4 | 6.4 | 9.5 |
| KHC0564 | 5/64 | 2 | 2.38 | 4.76 | 5.2 | 7.9 | 9.5 |
| KHC0332 | 3/32 | 2.5 | 3.18 | 6.35 | 7.1 | 10.3 | 12.7 |
| KHC0108 | 1/8 | 3 | 3.97 | 7.94 | 8.7 | 12.7 | 16 |
| KHC0532 | 5/32 | 4 | 4.76 | 9.53 | 9.53 | 14.3 | 17 |
| KHC0316 | 3/16 | 5 | 5.56 | 11.11 | 11.11 | 16.7 | 25 |
| KHC0732 | 7/32 | 6 | 6.35 | 12.7 | 12.7 | 19 | 26 |
| KHC0104 | 1/4 | 6.5 | 7.14 | 14.29 | 13.5 | 20.6 | 28 |
| KHC0932 | 9/32 | 7 | 7.94 | 15.88 | 14.3 | 22.2 | 30 |
| KHC0516 | 5/16 | 8 or 9 | 9.53 | 19.05 | 17.5 | 26.2 | 32 |
| KHC0308 | 3/8 | 10 or 11 | 11.11 | 22.23 | 19.1 | 29.4 | 36 |
| KHC0716 | 7/16 | 12 | 12.7 | 25.4 | 23.8 | 36.5 | 42 |
| KHC0102 | 1/2 | 13 | 14.29 | 28.58 | 27 | 41.3 | 50 |
| KHC0916 | 9/16 | 14 | 15.88 | 31.75 | 28.6 | 44.5 | 54 |
| KHC0508 | 5/8 | 16 | 17.46 | 34.93 | 31.8 | 49.2 | 64 |
